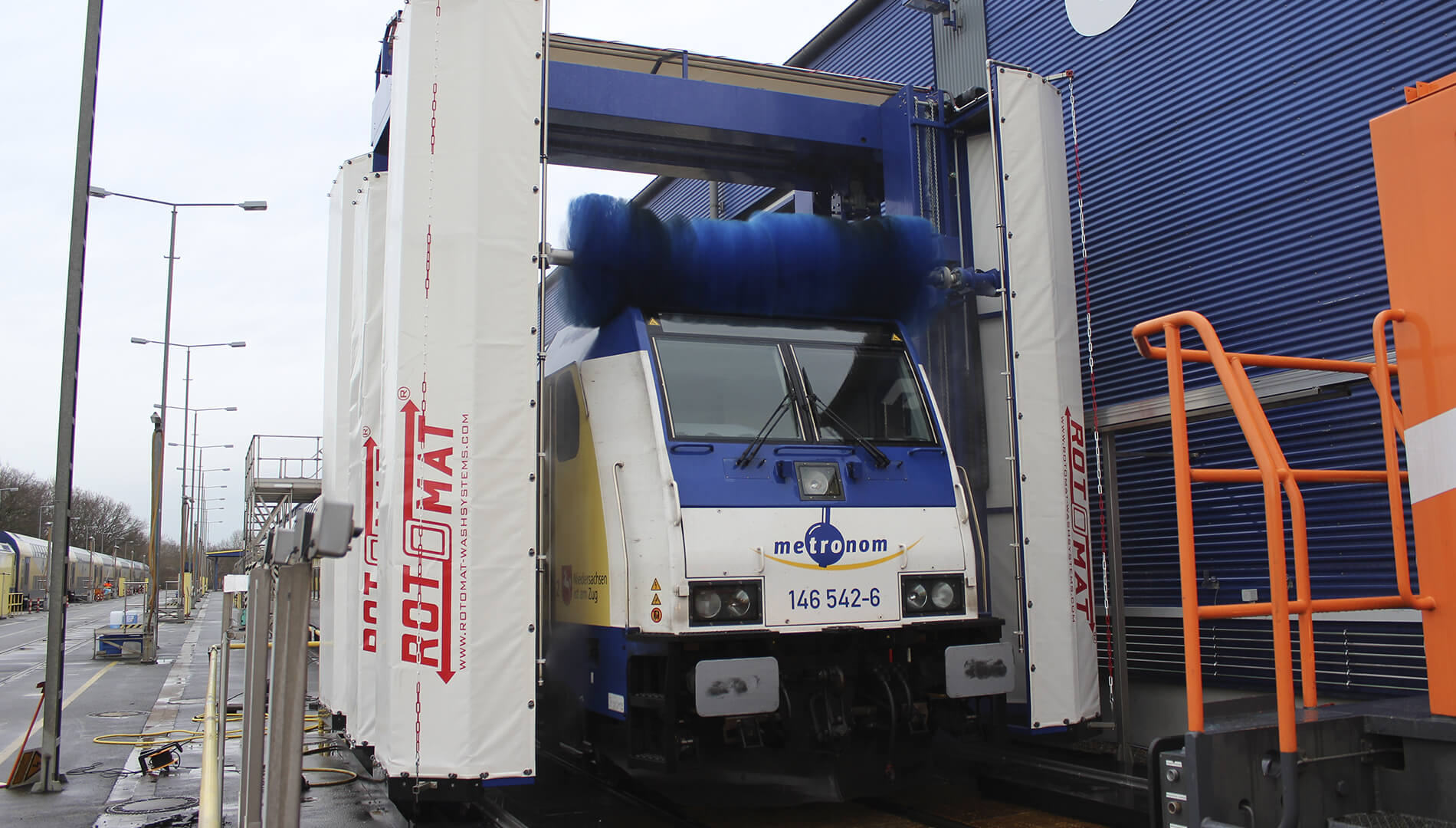

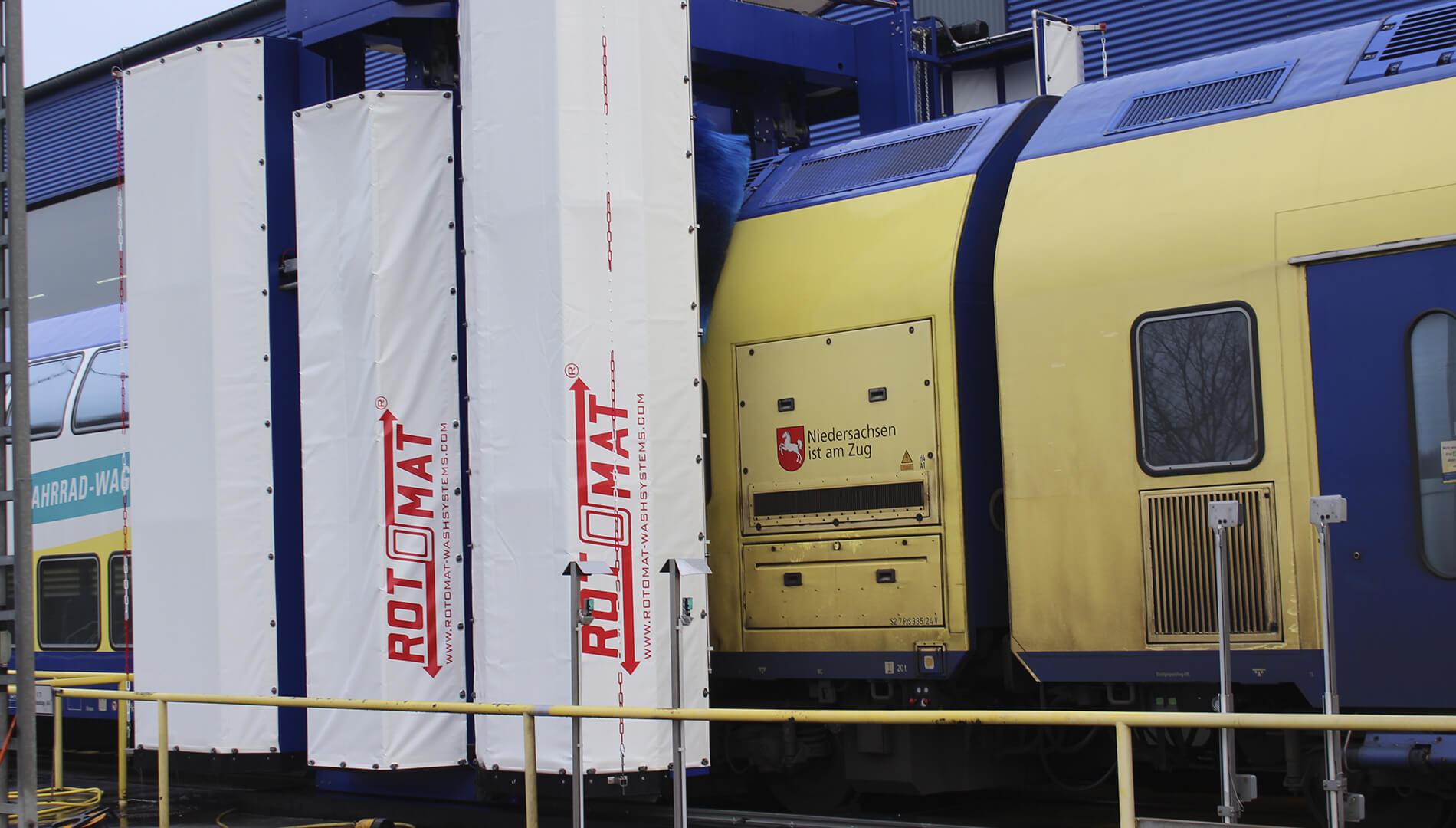

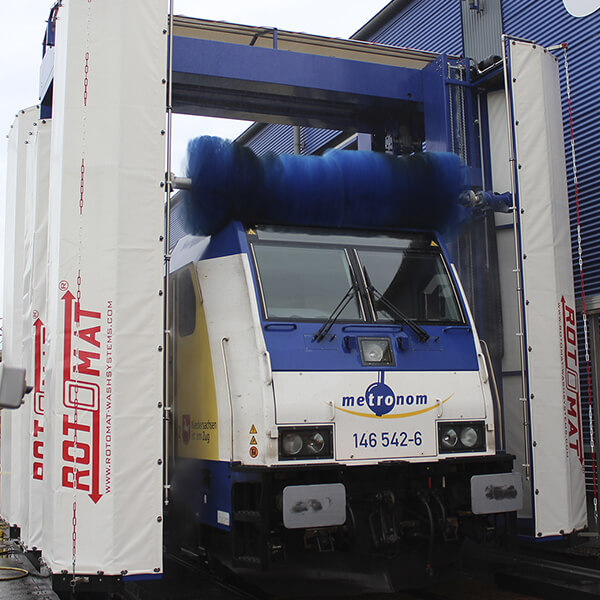

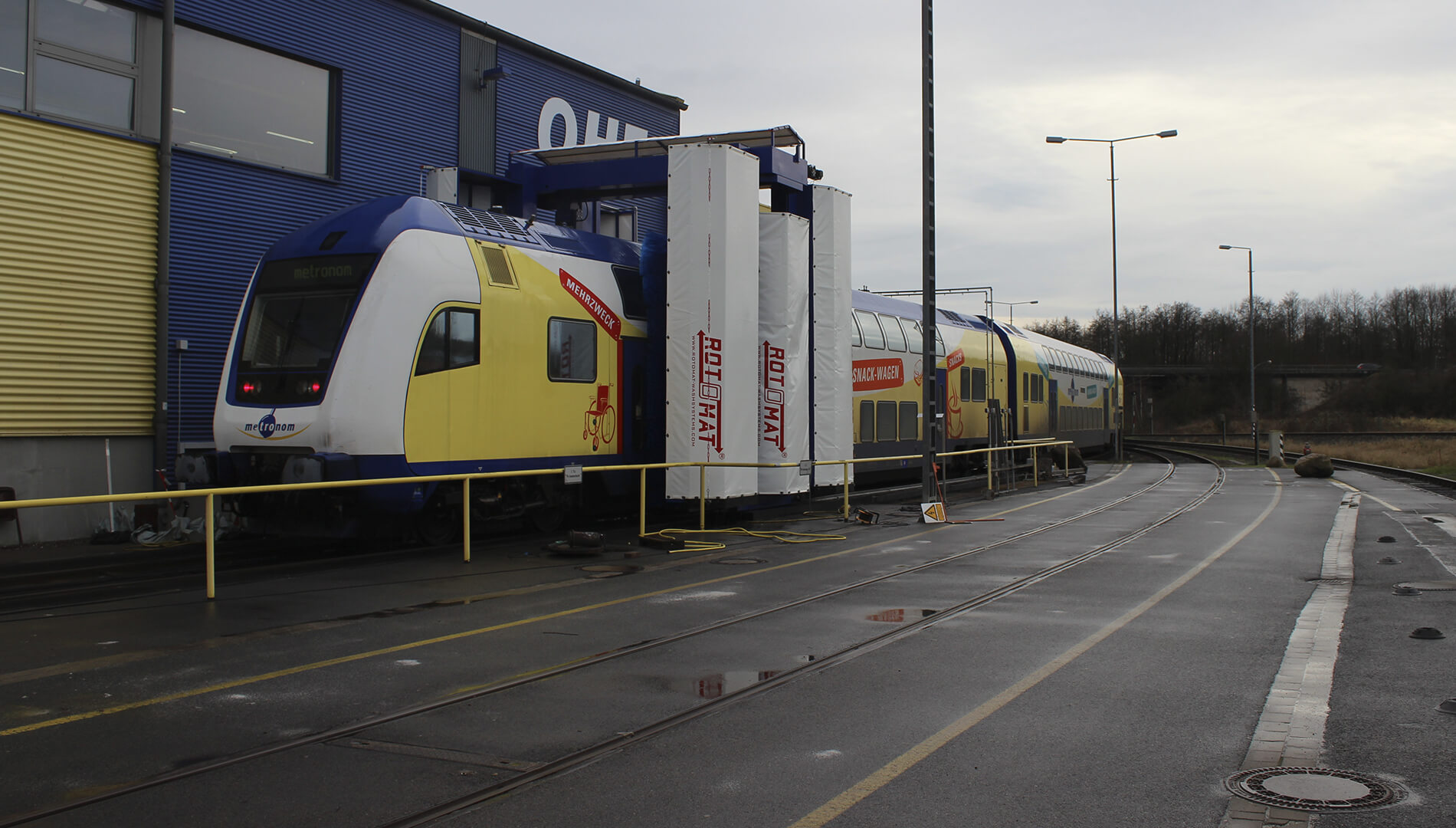

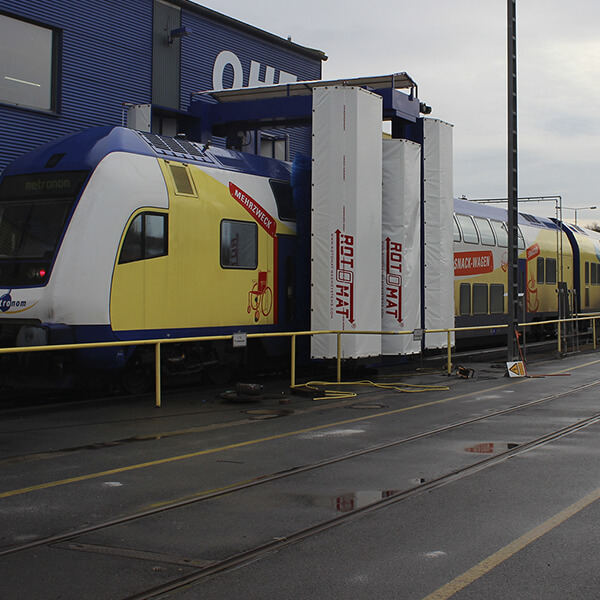

Trams, busses, trucks and transporter as well as trains became washed all-automatic, fast,
gently and thoroughly. The lateral brushes and the roof brushes consists of single
exchangeable segments of brushes with soft PE-X brushes.
TW600 standard-equipment:
30 standard programs for different vehicles
Portal design
2 side-brushes for front-, lateral- and rear-wash
Side-brush equipped with a tilt function +-80° for a contour-adapted cleaning of the
front and rear
Side-brush equipped with a tilt function for automatic bypass of the coupling from
trams and trains
2 side-brushes for the extra reverse side wash to optimize the cleaning
of the side surfaces during the passing operation (stop & go-washing on short
wash areas)
2 roof-brushes for front-, roof-, roof-edge- and rear-wash
equipped with a tilt function and a swivel device from 0° to 90°
the brushes are movable about 3 axes (3D)
Optional available with 4D – swivel device to optimize the front- and rear-wash
Optional skirt-brushes for cleaning the lateral surfaces in the lower area
special mirror programs for busses
brushes completely electronic controlled
automatic dosage of shampoo and gloss dryer with electronically controlled dosing
pump
varying speed of washing by frequency converter-controlled traction motors
separate switchboard with microprocessor control for installation in the technical room
movement of the brushes by maintenance-free round link chain
drive motors in Heavy-Duty-design for a high density of washing
portal hot-dip galvanized and powder-coated
optional available coated by corrosion protection class C5 or stainless steal
Portals constructed with square tubes and flashings
microprocessor control with water protected switchboard, mountable at any given
point
the wash racks equipped with control cabinet with frequency converter and needed
SPS-technique to minimize malfunction due to long transmission routes and reduction
of EMC load
all drives controlled by frequency converters or soft starter, therefore
increases the efficiency and a reduction of the wear
integrated central lubrication for ball bearings
Optionally available with RFID-system for automatic vehicle identification
